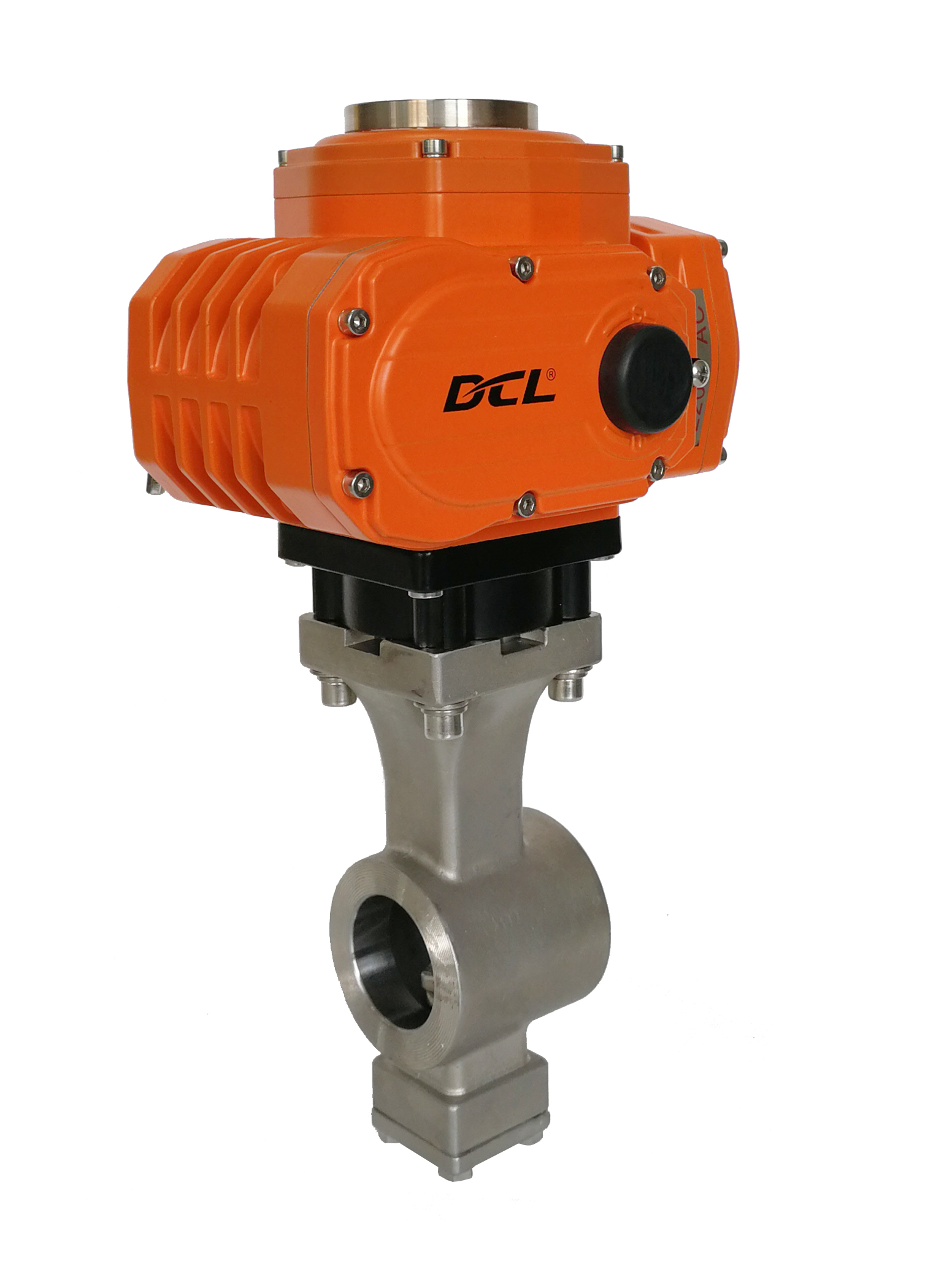

Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator

Adjustable type electric compact actuator with basic error ≤ 1%

Features

• Quarter turn operation proportional to input signal
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• Heavy duty motor with thermal overload protection
• Valve position indicator/flat indicator or convex indicator available
• Output 4-20mA signal for valve position
• Standard ISO5211 multi-flange valve mounting
• Full potted multi-function smart control pack resistance to vibration and moisture
• World leading anti-interference ability, control accuracy and sensitivity
• Self-calibrating and problem self-checking function
• Unique integral motor/control pack/ housing design with very small size
• Weather proof aluminum alloy enclosure with thermally bonded polyester coating
• C3 level corrosion resistance with 1000 hours salt spray test
• Manual override with wrench or handwheel
• CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed
• Optional functions such as heater,modbus,fail-safe return and so on

Description

The DCL modulating type electric actuator adopts a fully potted resin-encapsulated control pack design. For intrusive electric actuators, a fully potted control pack offers superior reliability and safety compared to an exposed control board. Without potting protection, the electronic components on the board are easily damaged or shorted due to accidental contact during wiring or inspection, leading to a higher failure rate of both the control board and the actuator.

In addition, the resin encapsulation provides excellent protection in harsh environments, such as high humidity or strong vibration during transportation. It also offers effective electromagnetic shielding, enhancing the actuator’s resistance to interference.

Our control pack has passed stringent EMC and reliability tests, including:

• Surge test: 2500 V

• EFT (Electrical Fast Transient) test: 4000 V

• ESD (Electrostatic Discharge) test: 4000 V

• 85/85 endurance test: Continuous operation at 85 °C and 85% relative humidity for over 600 hours with stable performance

The actuator has successfully passed comprehensive EMC tests (EFT, ESD, and surge) and is CSA certified, fully compliant with UL and CSA standards.
