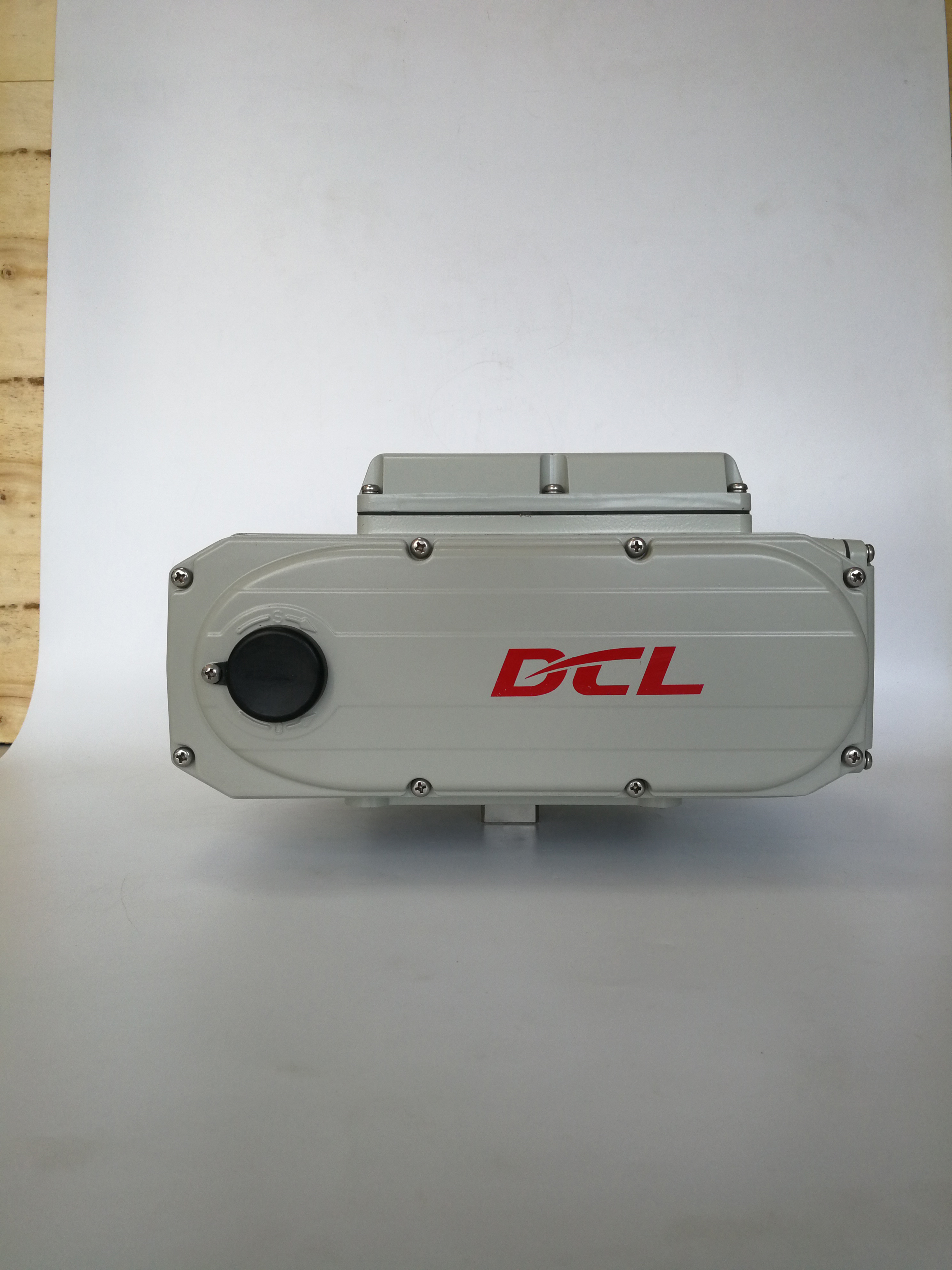

Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator
جزئیات محصول
| نام محصول | محرک برقی چهارم به نوبه خود | گواهی شده | CSA |
|---|---|---|---|
| زاویه نصب | 360 درجه | وزن کل | 1.2 کیلوگرم تا 20 کیلوگرم |
| قدرت موتور | 6W تا 140W | ویژگی | اثبات هوا |
توضیحات محصول
CSA certificated quarter turn electric actuator/complied to UL standard
Features:
- Torque from 18Nm to 3000Nm/160in.lbs to 26550 in.lbs
- All parts are certified by CSA, complied to UL 429 and CSA C22.2
- Weather proof NEMA 4/4X and IP67 sealing grade with aluminum alloy housing cover/IP 68 optional
- Duty cycle 60% for 18Nm/160in.lbs model and 70% for all other model
- Self-locking at any position when power off
- Limit switches to confirm valve position/potentiometer or position transmitter optional
- ISO 5211 multi-flange mounting
- Manual override with wrench or handwheel
- Optional functions such as Modbus Communication,fail-safe return,over torque protection,Dehumidifying heater and so on.
Description
Since 2013, the standard weatherproof series of DCL electric actuators has maintained continuous CSA certification, fully and strictly complying with both United States (ANSI/UL) and Canadian (CSA C22.2) baseline electrical safety standards. Expanding its hazardous location capabilities, the DCL explosion-proof series successfully navigated rigorous explosive environment testing and officially achieved full CSA certification for hazardous locations in 2020.
Beyond deepening North American safety protocols, the entire DCL product portfolio is CE marked and fully complies with RoHS 3.0 environmental directives. To guarantee absolute objectivity across all compliance metrics, all environmental tolerance and material safety testing operations are exclusively executed by the authoritative third-party agency SGS.
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AC110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AC110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AC110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AC110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AC110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-200 | 92S/2000Nm | 19.5Kg | ||||
| DCL-300 | 110S/3000Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~600Nm | 9.5Kg | |||
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-200 | DN350~400 | DN250 | DN900 |
| DCL-300 | DN450~600 | DN300~350 | DN1000~1200 |
About Us:
Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.
DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
