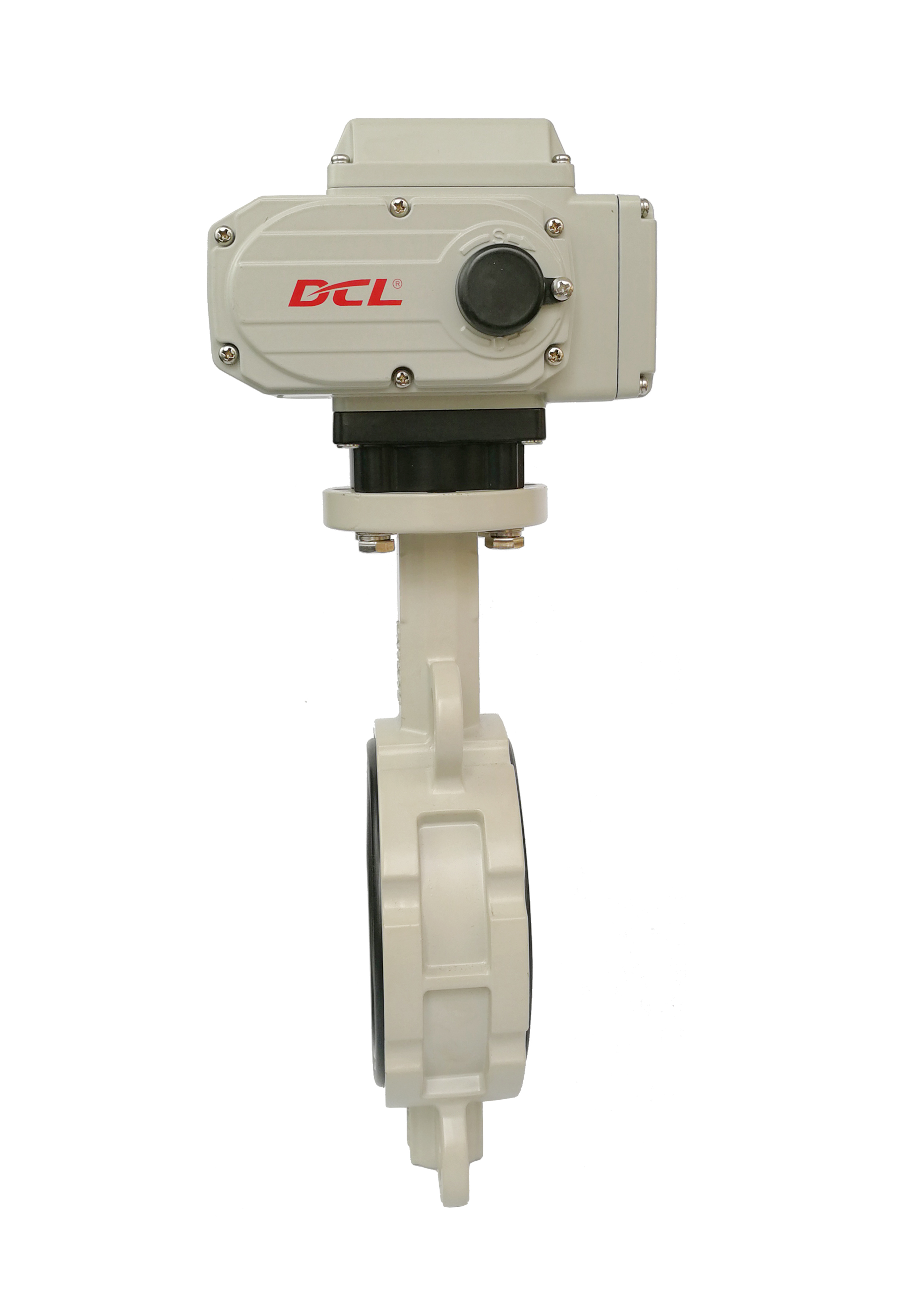

Compact Watertight DC24V IP67 90° 100Nm Rotary Valve Actuator

Compact watertight DC rotary actuator with protection against dust and water / IP68

Features

• Quarter turn operation modulated by 24VDC power
• Torque can be precisely setting within a certain range
• Heavy duty DC brushless motor with low temperature rise during production
• Compact smart resin plastic packaged drive controller
• Stable operation on extra high/low temperature with high humidity
• Weatherproof IP 67 robust aluminum alloy enclosure with powder coated
• All metal gears with self-locking worm gear
• UL standard/CSA listed/CE marked/RoHS 3 complied

Description

DCL compact electric actuators are widely applied in HVAC systems, typically paired with butterfly valves. In modern building automation, these actuators play a crucial role in regulating indoor temperature, air volume, water flow, condensate flow, and hydraulic balance.

Equipped with a heavy-duty motor featuring an 80% duty cycle, DCL actuators provide precise and frequent control for more accurate temperature management. Their long operational lifespan significantly reduces maintenance needs and overall costs. Designed for both indoor and outdoor installation, they are built to withstand harsh environments. An optional dehumidifying heater further protects the actuator from condensation-related damage.

All DCL HVAC actuators undergo rigorous testing in accordance with UL and CSA standards, and are certified by CSA, as well as CE and RoHS certified by SGS.

Specification
